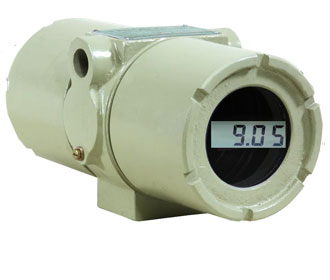

972 Model Two transmitter are operating on 24 VDc to measure pH Value.
Input and output isolation provide.
Explosion proof enclosure is certified for class 2A and 2B operation.
Loop Powered LCD display is employed for parameters displayed. |
|
| Specifications |
|
| Range |
0.00-14.00 or any other range on request |
| Accuracy |
0.25% |
| Resolution |
0.01 pH |
| Zero Adjustment |
+/- 15% of Zero |
| Span Adjustment |
+/- 15% of Span |
| Temperature Compensation |
Automatic upto 100°C |
| Enclosure |
Field Mountable 195X170X70 SMC Enclosure |
| Explosion Proof Enclosure |
On Request |
| Current Output |
4-20 mA Isolated into 600 ohms resistive load |
|
| Display |
3 1/2" LCD (Loop Powered) |
|
|
|
 |
|
|
|
